Electric Three-way Regulating Valve

Short Description:

ZDL(Q/X) type electronic three-way combination/shunt control valve is mainly used to divide an inlet fluid into two outlet fluids or two inlet fluids into one outlet fluid. Three way is divided into (ZDLQ) confluence control valve, (ZDLX) shunt control valve. Valve size, the pressure difference is small, the confluence valve can also be used as a diverter valve, but the valve size is large, the pressure difference is high, do not use the diverter valve.

Product characteristics

ZDL(Q/X) type electronic three-way combination/shunt control valve is mainly used to divide an inlet fluid into two outlet fluids or two inlet fluids into one outlet fluid. Three way is divided into (ZDLQ) confluence control valve, (ZDLX) shunt control valve. Valve size, the pressure difference is small, the confluence valve can also be used as a diverter valve, but the valve size is large, the pressure difference is high, do not use the diverter valve.

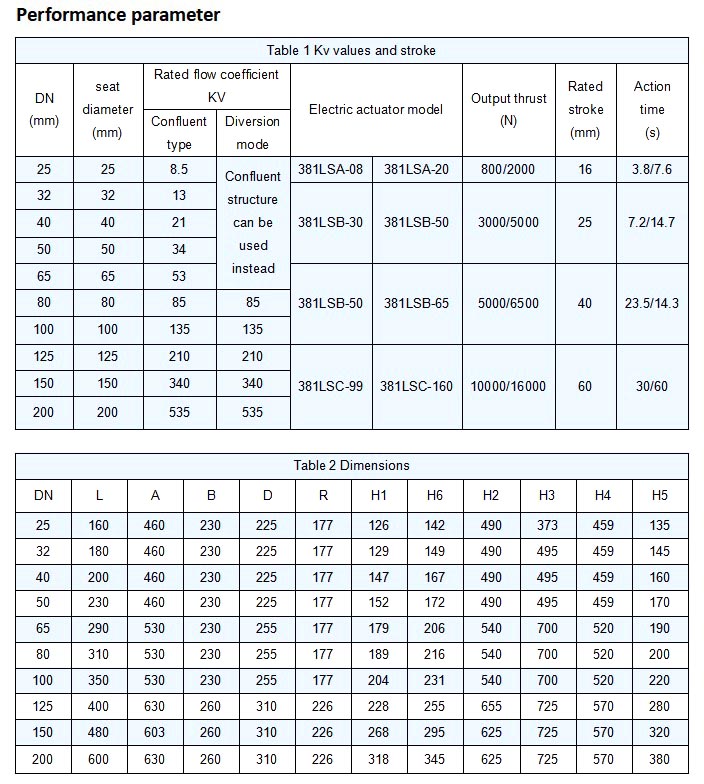

Standards and specifications

ZDLQ(combined three-way regulating Valve)

ZDLX(Shunt three-way regulating Valve)

Type: three-way cast ball valve

Valve size: DN25~200

Rated pressure: PN16, PN40

Connection type: flange

Flange standard: Steel flange according to GB9113-2000, JB/T-94

Sealing surface type: PN16 convex surface

PN40 is a concave and convex surface

Material: ZG230~450

ZG1Cr18Ni9Ti

ZG1Cr18Ni12Mo2Ti

Gland form: platen type

Filling material: V-type PTFE packing, flexible graphite packing

Pad: Type, tooth type and flat type

Material, F4/ Modified F4, Stainless steel + graphite
